Panasonic LED screens have
been used in several sport stadiums
around the World.
They provide
bright images of the highest
quality. Electro MEDIA,
with its affiliation
with
Panasonic -Taiwan can provide
the SAME quality product FOR LESS,
although
benefiting from their
experience and full technical
support.
Stadium applications consist of a
video display board used to transmit
live events,
play advertisements,
display scores and
general
information. On the side, an analog
clock displays actual time, and a
digital display shows time in play,
and permanent
scores.
A typical
stadium video display board alone
usually measures 8x6m or 12x6m,
and
with the optional clock and display:
11x6m
and 16x6m (+frame).
As general specifications, LED
pixels pitch should not exceed 25mm.
and viewing angle
must be 140*
horizontally and 50* vertically.
Control room could be located either
nearby the board or up to 300m away
(900ft) using fiber optic cables.
Electronic displays could also be
used as "border" or "perimeter"
advertising panels
or banners
replacing static
billboards around the stadium for an
increased
advertising revenue.
Superior, steady,
bright image displays,
demonstrated in Japan, Taiwan,
Australia, Europe and the Middle East.
OUTDOOR VIDEO
SCOREBOARDS

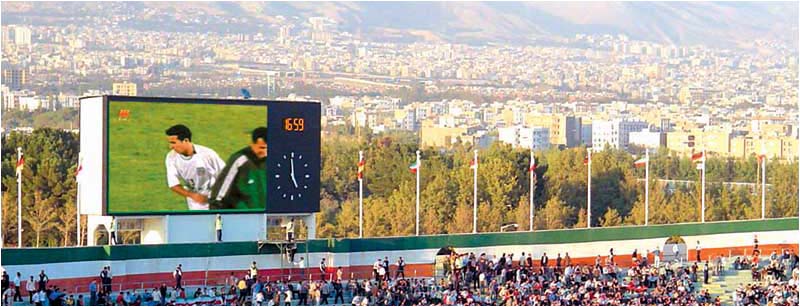

Azadi
stadium in
Tehran - IRAN
Football
stadium in
Liberec - Czech Republic
Stadium in
Sydney- Australia

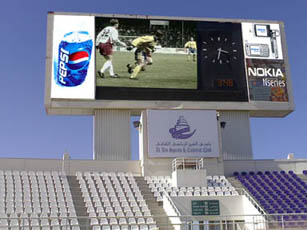

Al
Ain Football
stadium in Dubai - U.A.E
Al
Ahli Football
stadium in Dubai - U.A.E

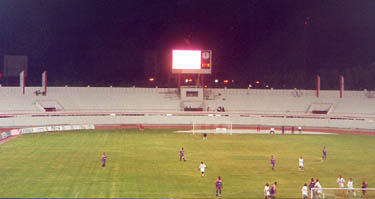

Al
Sharjah Football
stadium in U.A.E
Al
Nasr Football
stadium in Dubai- U.A.E

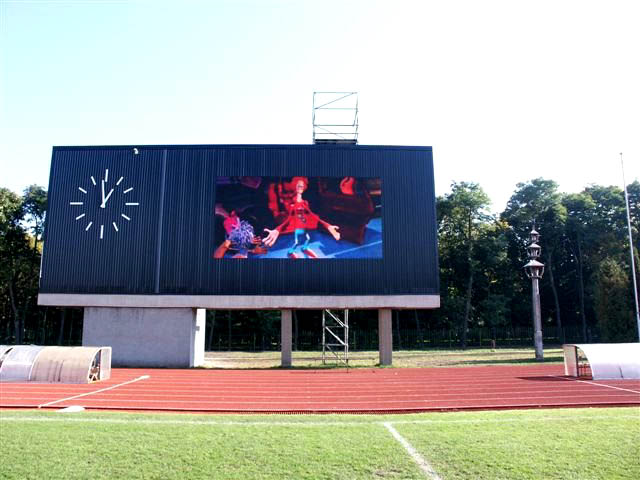

Video scoreboard installed
in Kaunas Stadium- LITHUANIA

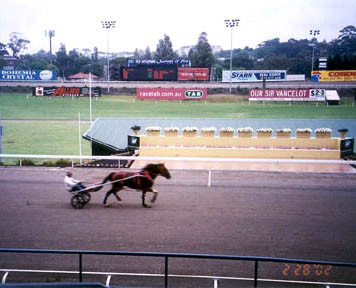

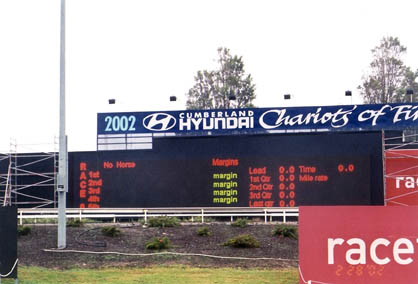

Horse
race track video & scoreboard displays in
Sydney-Australia
INDOOR VIDEO
SCOREBOARDS
Indoor arena in Dubai -
UAE (4 stadiums)

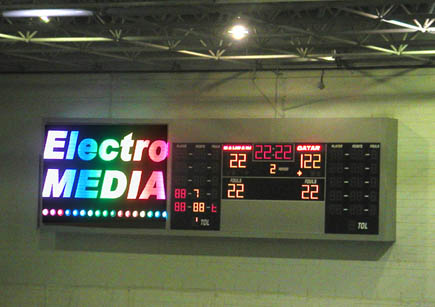

Indoor arena in Doha-
Qatar
FOR SPORTS
SCOREBOARDS
ELECTRONIC FIELD BANNERS
§Electro
MEDIA
electronic banners arespecially designed illuminated and
animated advertising displays used in indoor and
outdoor stadiums around the field, in
replacement of the static or rolling banners,
tremendously increasing the advertising income,
and creating a more attractive and animated
environment to an already exciting game in play,
for all viewers, inside and outside the
stadiums. Although a quite high investment, the
return would be very interesting and fast.
§
§Using
the latest LED technology, these electronic
banners are becoming more sophisticated, using
less energy, with an ever increased resolution
and visual quality.
Technology breakthrough
Because
electronic banners need a large amount of
power, that represent a high cost and
technical handicap to most clubs,
Electro MEDIAhas developed a model using SMD 3 in
1 LED technology, produced by NICHIA
Corporation, Japan, that uses about 30% less
power than conventional LED lamps in 3
colors, although increasing resolution,
picture clarity, uniformity, with the same
brightness and wide viewing angle than
before.
Construction
§Sturdy
metal cabinets with
anticorrosion paint, resistant
to hits, with rubber shock
absorbers on top.
Adjustable and folding brackets,
built in carrying handles (by 2
persons) and easy-fix locking
system.
Packed in flight cases for easy
and safe transportation and
storage.
Cabinets dimensions: Approx. 1x
1m or 1x 2 m.
Lightweight: Less than 50kg /m2.
Back doors for maintenance.
Several resolutions to choose
from: 16, 20 mm pitch or other
on request.
Soft rubber mask to absorb hits
from balls and players alike,
and protect LED dots.
Soft rubber top to protect
players.
Waterproof front (IP65) and
water resistant back (IP44,
because of ventilation fans)
Easy to link data and power
connectors.
Able to work in harsh climates
(-10° C to +50°C ).
Technical specifications
§High
quality Japanese
LEDs: outdoor SMD 3
in 1 (surface mount
device) real pixels
Several resolutions
to choose from: 16
and 20 mm pitch, in
real or virtual
pixels, SMD or
lamps.
High brightness (up
to 6000 Nits)
adjustable by sensor
or software (100
levels)
Wide visible angle:
up to 170*
horizontal and 60*
vertical
High frequency (244
Hz) scanning
allowing flicker-
free pictures to be
seen on photo and
videos cameras and
TV.
High color
capability (up to 14
bits)
Perfect color
uniformity and
contrast.
Minimum viewing
distance (dot-free):
20 m
Easy to use software
capable of
displaying text,
logos, videos and
live video.
Fiber optic cable
communication from a
distant control room
to the display
control PCs located
on the field.
Power: Max: 700 W /
m2 – Typical 250 W
(220V)
LED life: 100,000
Hours
Up to 5 years full
warranty, with over
15 years of
equipment life
expectancy
(depending on usage)
CE certified
Banner front with
soft mask and top rubber protective pad
Banner side with
carrying handle.
Banner back with
built-in supporting legs
and easy lock system
