MESSAGE DISPLAYS

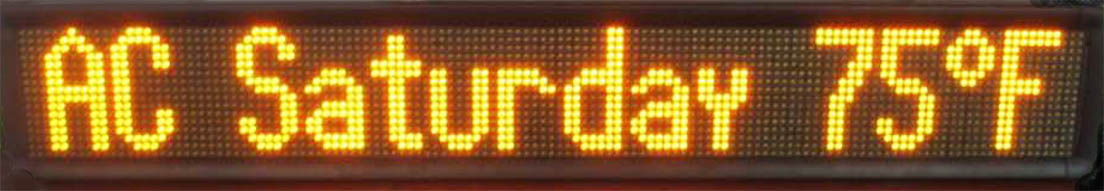

1 line indoor display, multicolor LEDs, 15 or 20 x 2" char. height
L:51 to 74 x H:11cm. Remote control (PC optional)

1 line indoor display, High bright Red LEDs, 15 or 20 x 4" char. height
L:151 x H:19cm. Remote control (PC optional)

2 line indoor display, multicolor LEDs, 32x 2" char. or 16x4" char. height
L:155 x H18cm. Remote control (PC optional)

indoor display

Multiline indoor display, available in Red or Multicolor LEDs. PC control.
Choice of 2 or 4" char. height, 3, 6 or 9 lines, 20 or 30 char. per line.

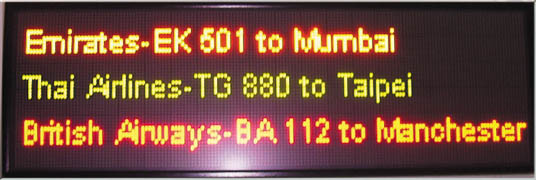

INFO PANEL Full Dot Matrix Multi line displays, supplied in 5 or 10mm Red or 3 color LEDs. Available in minimum resolution of 16x64 dots to 128x256 dots. Using a PC, it can write text in any language and Font, and display graphics, using a software under Windows (supplied) With internal memory and RS 232 direct communication or via modem for remote access.

OUTDOOR MODELS

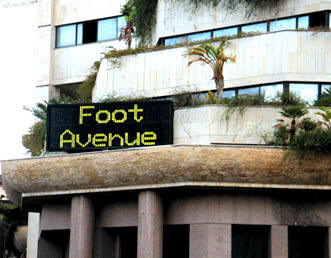

Outdoor 1-4 line message display, pitch 10 or 16mm, in super bright Red, 3 color or full color LEDs
Available in sizes ranging between 32cm to 1m height and 1,5 to 3m long

LARGE OUTDOOR MODELS

outdoor display

These LARGE displays are supplied in modules, to be fixed on site within a steel frame.

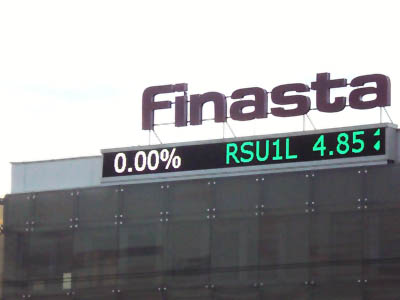

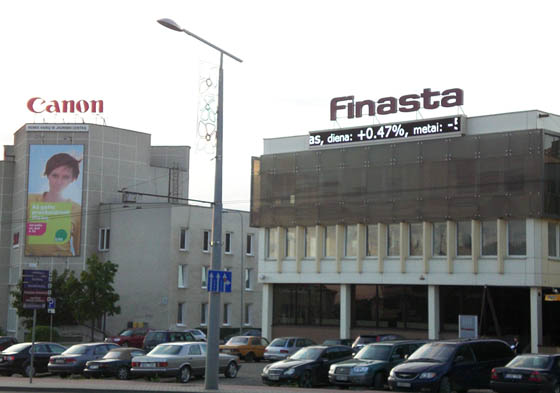

The board featured on the left has a size of 6.4m x 4m (21' x 13') and constituted by 8x5 modules size 800 x 800 mm, 16 x16 pixels, Pitch 50mm in Full Colors. Multi lines of text in the font of your choice can be displayed as well as graphics, animation, logos, date, time, temp etc... Controlled by an internal PC main board with expandable memory.

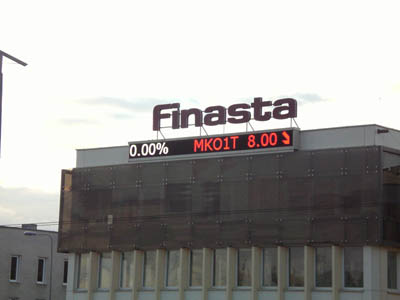

The board on the right is constituted by 5 x 2 = 10 modules of similar specs. except that it's in 3 colors (Red/Green/Yellow), not full colors.

outdoor display
