OUTDOOR LED
CURTAIN WALLS
|
 |
 |
|
A
new trend in
building innovation!
TRANSPARENT LED FASCIA DISPLAYS or LED CURTAINS
We have designed a new product line especially for
building fascias, to display variable colors, video and
images on a large surface at a reasonable price, making
those buildings get out of the crowd and transforming
them into an astonishing day or night attraction. This
is achieved by placing a series of high intensity LED
clusters or pixels on aluminum bars on the building fascia,
horizontally or vertically. They are supplied in
lightweight, waterproof modules of different sizes
(depending on pitch), to be assembled on
location on the building fascia, whether masonry or
glass (with 50% transparency). Several pitches are
available from 18 to 120mm. Operated by a central PC,
building walls can simply perform just like a normal but
giant video screen, day and/or night, as you can choose
between two brightness, for all day, or night only use,
while looking like normal facades during the day. Power
consumption is very low, life very long (over15 years),
and maintenance negligible and easy.
Installation is also easier and less costly than
traditional Led modules cabinets.
Below are some pictures for your review.
|
|
|
 |
|
 |
 |
|

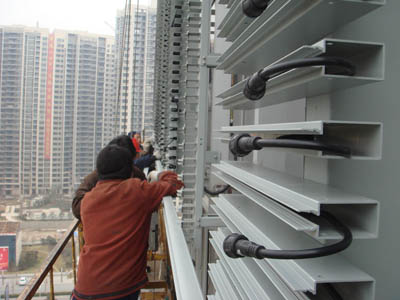

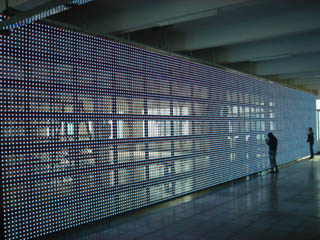

A Led wall is being installed on a facade and
showing transparency (Model EVLW-37H) |
 |
 |
|
|
|
.jpg) |
 |

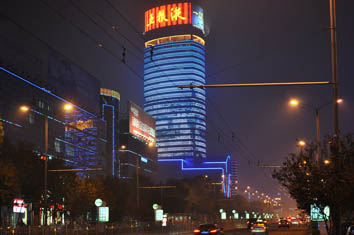

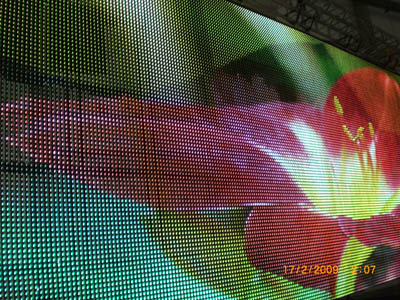

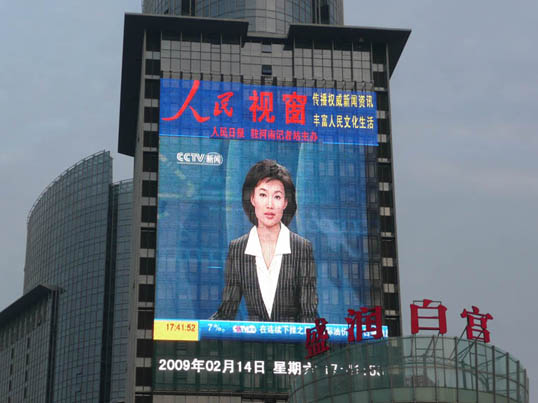

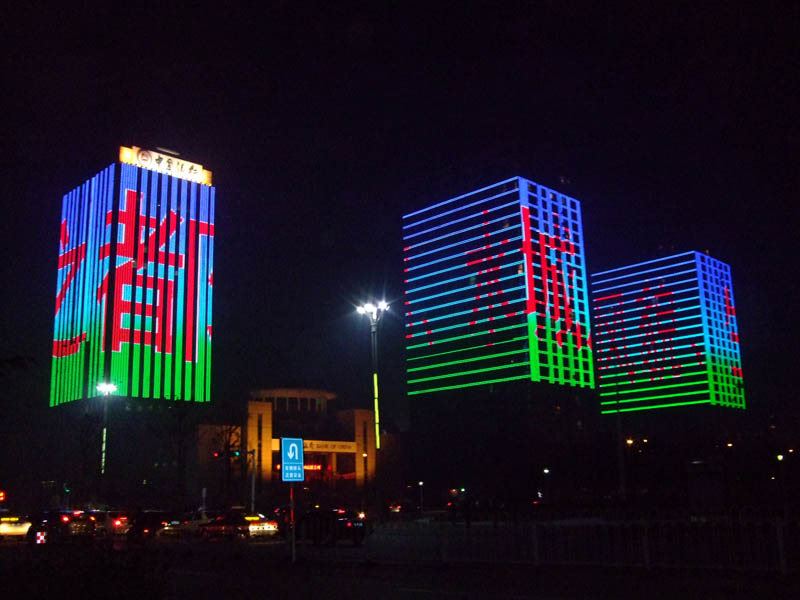

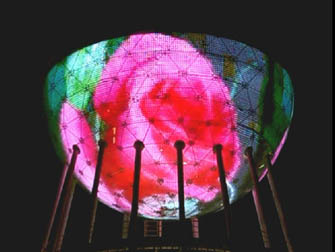

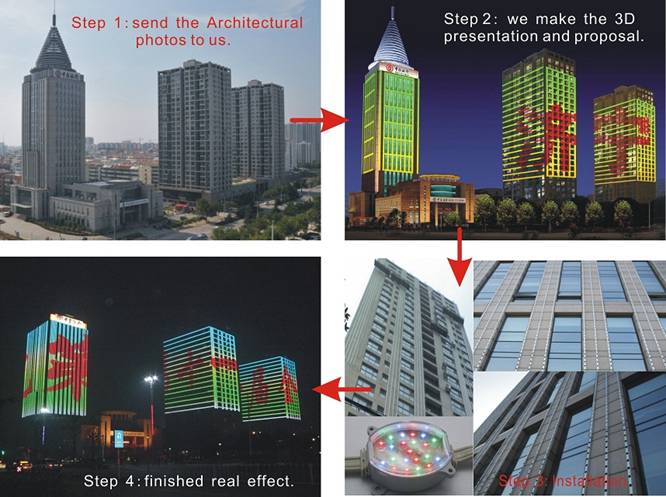

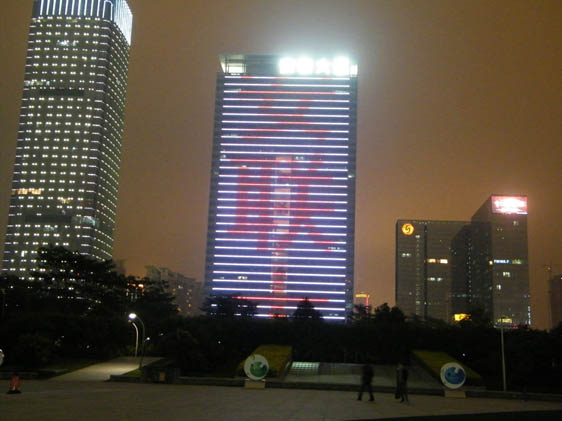

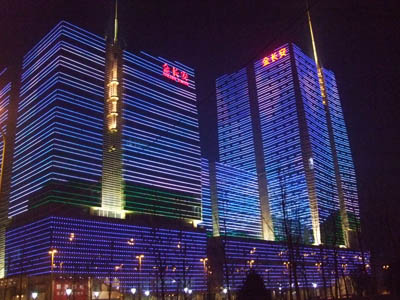

Example of applications
|
 |
.jpg) |
|
|
|
.jpg) |
.jpg) |
|
|
|
.jpg) |
.jpg) |
|
|
 |
|
|
 |

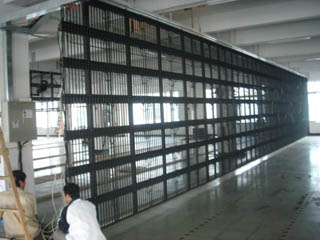

We also produce several models of OUTDOOR & INDOOR LED CURTAINS
(for events, TV studios, clubs, decoration
etc...)
|
MODEL>
|
EVLW-18 |
EVLW-20 |
EVLW-25 |
EVLW-37* |
EVLW-50** |
|
Module
dim.
(mm) |
600x600 |
640x640 |
800x800 |
600x120 |
800x800 |
|
Pixels /
module
|
32x32=1024 |
32x32=1024 |
32x32=1024
|
16x32=512 |
16x16=256 |
|
Pitch
|
18.75 mm |
20
mm |
25 mm
|
37.5 mm
|
50 mm
|
|
Configuration
|
1R/1G/1B |
1R/1G/1B |
1R/1G/1B
|
1R/1G/1B
|
1R/1G/1B
|
|
Brightness
/ sq.m.
|
5000
Nits |
4500
Nits |
4000
Nits
|
2300/7000
Nits |
1500
Nits
|
|
Total
life
(Hours)
|
100,000 |
100,000 |
100,000 |
100,000 |
100,000 |
|
Visible
angle
|
120*V-60*H |
120*V-60*H |
120*V-60*H
|
110*V-50*H
|
110*V-50*H |
|
Viewing
distance *
|
25-1500M |
30-1500M |
40-1500M
|
75-1500M
|
100-1000M
|
|
Video
quality* |
Excellent
|
Excellent |
Very
good |
Good
|
Average |
|
Operating
Temp.
C |
-25*/+55*
|
-25*/+55*
|
-25*/+55*
|
-25*/+55*
|
-25*/+55* |
|
Max.
power /
module |
200 W |
200 W |
200 W
|
100 W
|
50 W
|
|
Weight
per
module
|
7.5 KG |
8 KG |
8.5 KG
|
7 KG
|
5 KG
|
|
Protection
Level |
IP65
(waterproof) |
IP65
(waterproof) |
IP65
(waterproof) |
IP65
(waterproof) |
IP65
(waterproof) |
NOTE:
- *Model
EVLW- 37 is also
available in
high brightness
(horizontal
bars, as
featured above
model EVLW-37H)
- **Model EVLW-
50 is not well
visible during
the day
- Pitch means the distance between pixel centers
- Minimum viewing distance
means the distance from where a screen looks DOT-FREE, and
maximum means the distance from where you can still see
screen’s illumination during the
day.
- Higher or special brightness also available upon
request.
- Indoor models
are same as
outdoors but
LESS bright
- Specs. can change for the better without notice due to
technology advancements.
METRIC CONVERSION:
30cm=1’/ 25mm=1” /
1Meter=1.1Yard / 1Kg=2.2Lbs. / 0*C=32F
|
 |
| |
